Data Cable
Data Cable
Data Cable
Data Cable
Data Cable
Pin arrange for M12 Connectors

M12 Cables

Inline thermal mass flow meter with flange connection Flow Meter head protection

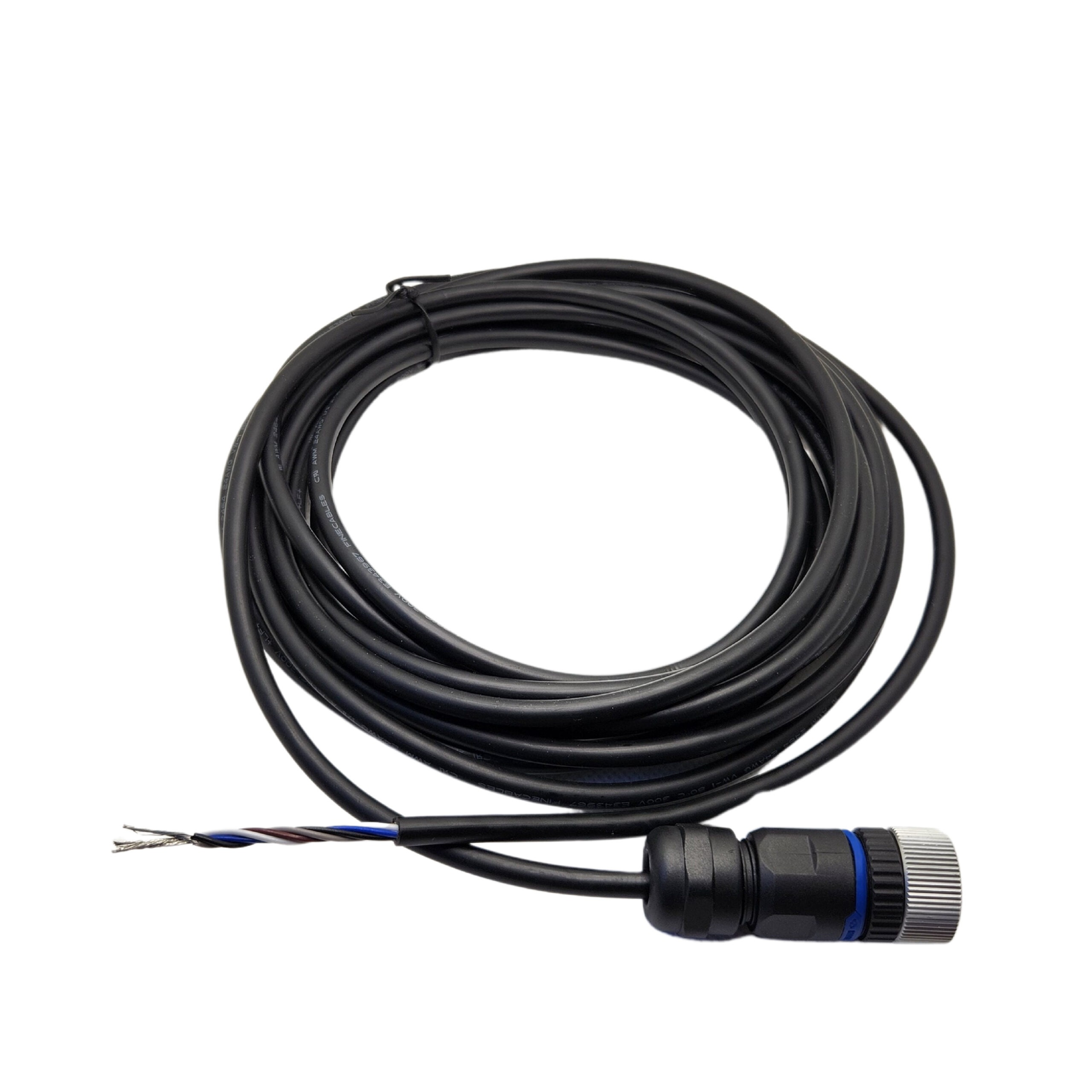

5 wire data cable for sensors and instruments. Perfect for connecting sensors to 24vDC power, Modbus output, 4-20mA output, displays, SCADA systems and more.

Standard Features

  • Rated Voltage: 125 V AC/DC
  • Wire Colours: Black, Grey, Blue, Brown, White
  • Unshielded
  • Cable Specification: N*0.34mm2
  • IP Rating: IP67
  • Ambient Temperature: -25 to +85°C
  • Outer Insulation (Jacket): Black PVC
  • A-Coded connectors

Options:

  • Length: 5 meters, 10 or 30 meters
  • Connections:
    • M12 Female and Bare wires
    • M12 Male and Bare wires
    • M12 Female and M12 Female
    • M12 Male and M12 Male
    • M12 Female and M12 Male

Applications

  • Manufacturing, industrial and pharmaceutical use
  • Permanent and temporary installations
  • Non-explosive environments
SKU: ACC1 Categories: , Tag: Brand:

5 wire sensor / instrument / data cables. Perfect for connecting sensors to 24vDC power, Modbus output, 4-20mA output, displays, SCADA systems and more.

5 x 0.34mm2 wire (AWG22), OD 6.0mm

5 Wires: Brown/White/Blue/Black/Gray.

Cables can be used with CAA Sensors: Dew Point Sensors, Flow Meter, Pressure Sensors, Power Meters and Temperature Sensors.

Features

  • Rated Voltage: 125 V AC/DC
  • Wire Colours: Black, Grey, Blue, Brown, White
  • Cable Specification: N*0.34mm2
  • IP Rating: IP67
  • Unshielded
  • Ambient Temperature: -25 to +85°C
  • Outer Insulation (Jacket): Black PVC
  • A-Coded connectors

 Options:

  • Length: 5 meters, 10 or 30 meters
  • Connections:
    • M12 Female and Bare wires
    • M12 Male and Bare wires
    • M12 Female and M12 Female
    • M12 Male and M12 Male
    • M12 Female and M12 Male
  • Applications
    • Manufacturing, industrial and pharmaceutical use
    • Permanent and temporary installations
    • Non-explosive environments

Downloads

Product Flyer – Specifications and Order Codes

Weight 0.5 kg
Dimensions 20 × 20 × 5 mm
HS Code

8544.42
