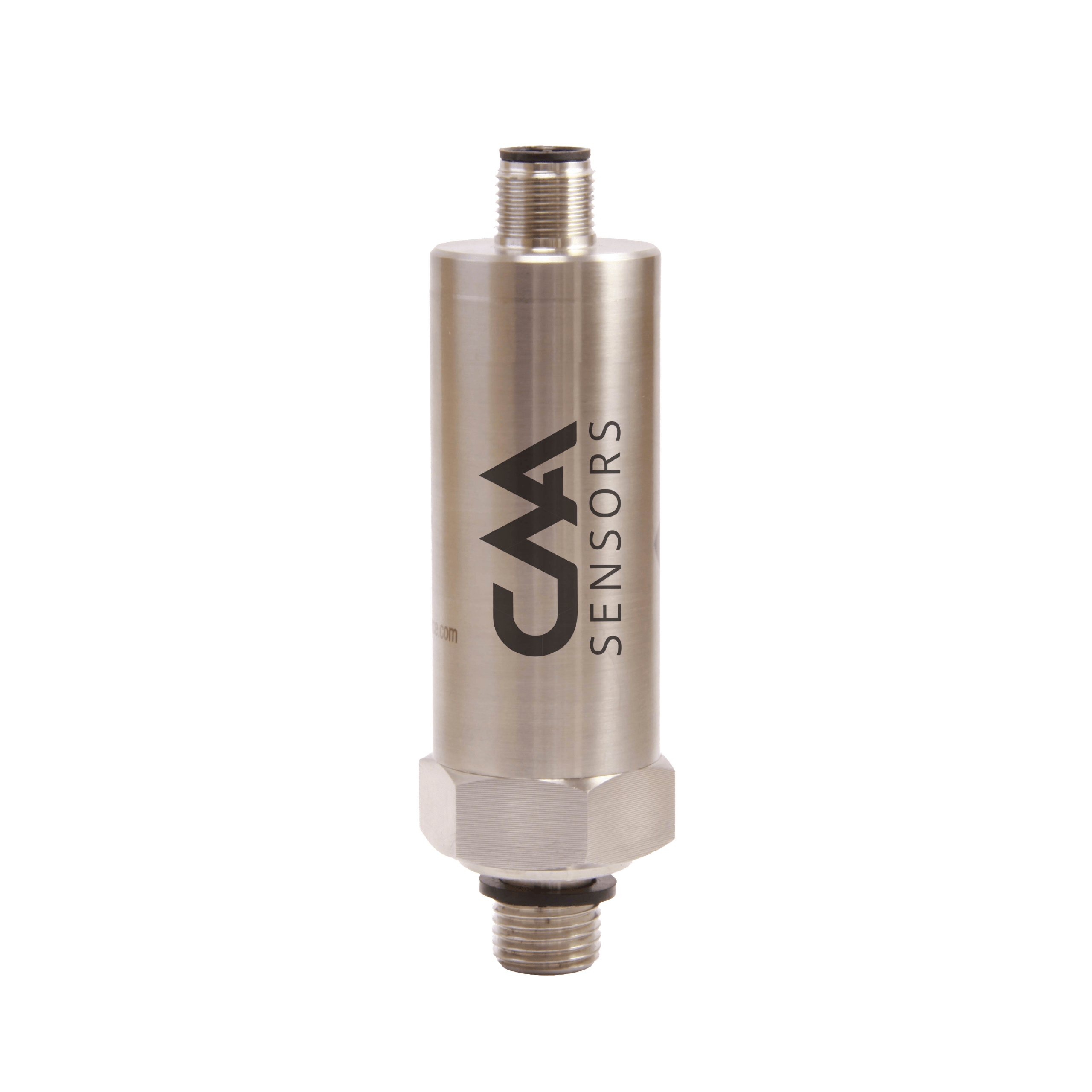

The pressure sensor can be used to measure pressure loss across the compressed air and gas system. This easy to install pressure sensor is perfectly suited for installation on compressed air and gas systems. It can be installed on both wet and dry gases up to 16 bar (232 psi). The sensor has 4-20mA or Modbus output.
For effective measurements, you will need at least:
- one (1) pressure sensor on the wet side of the system to monitor compressor output and
- one (1) on the dry side of the system to measure the system supply pressure.
Other pressure sensors can be installed to measure pressure drop at key locations such as near any high compressed air or gas consumers and at the far ends of the system.
Modbus Pressure Sensor Pack
- Pressure Sensor
- M12 connector (data cable optional)
- Calibration certificate
- User Manual
- 12 month warranty
Warranty & Calibration
12 month warranty
Calibration is recommended every 2 years (provided the sensor is not exposed to relative humidity above 85%).
Annual calibration is required if the sensor is exposed to relative humidity above 85%.
Accessories
Accessories such as mechanical and electrical fittings are available on the Accessories page.
Other Information

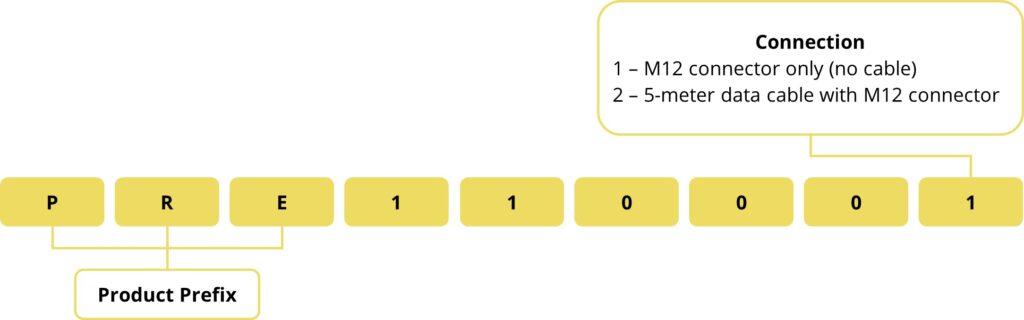

Part Numbers: PRE110001, PRE110002
