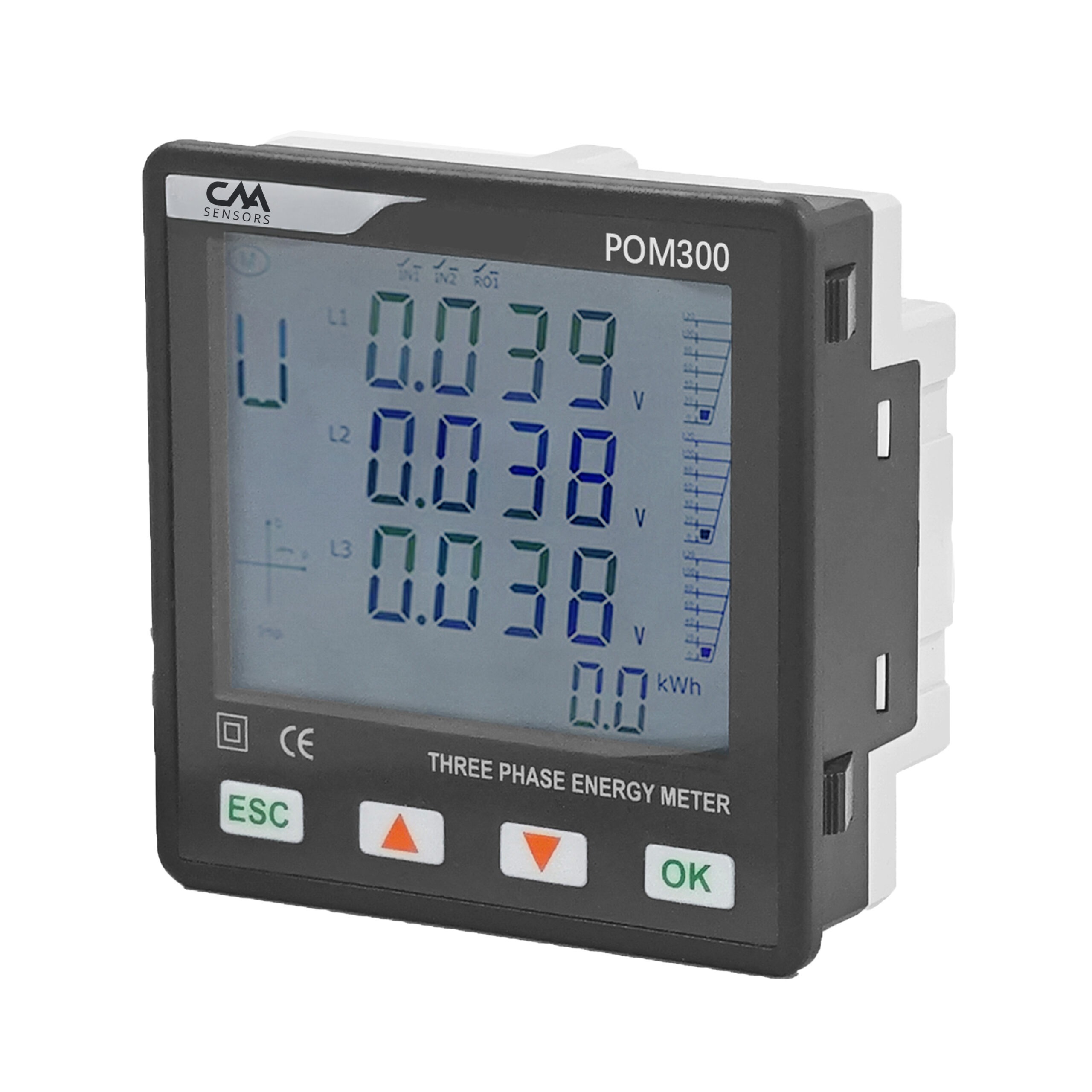

This single or three-phase, panel mount power meter is ideal for installation on main or sub-distribution boards where readings need to be accessed without opening the panel. The Modbus RTU output can be connected to your data acquisition system for easy access to data remotely.
Monitoring power consumption will give you a clear indication of the energy and cost of running your compressed air system. This power meter measures Voltage, Amps, Frequency, Kilowatts, Power factor, Real Power, Reactive Power, Apparent Power, Kilowatt hours and harmonics. It can be installed on mains supply or used for sub metering individual equipment or sub loads.
Installing a panel mount power meter is not difficult but should be done by suitably qualified and experienced technicians. Some knowledge of MODBUS communications is required to connect the power meters to your network

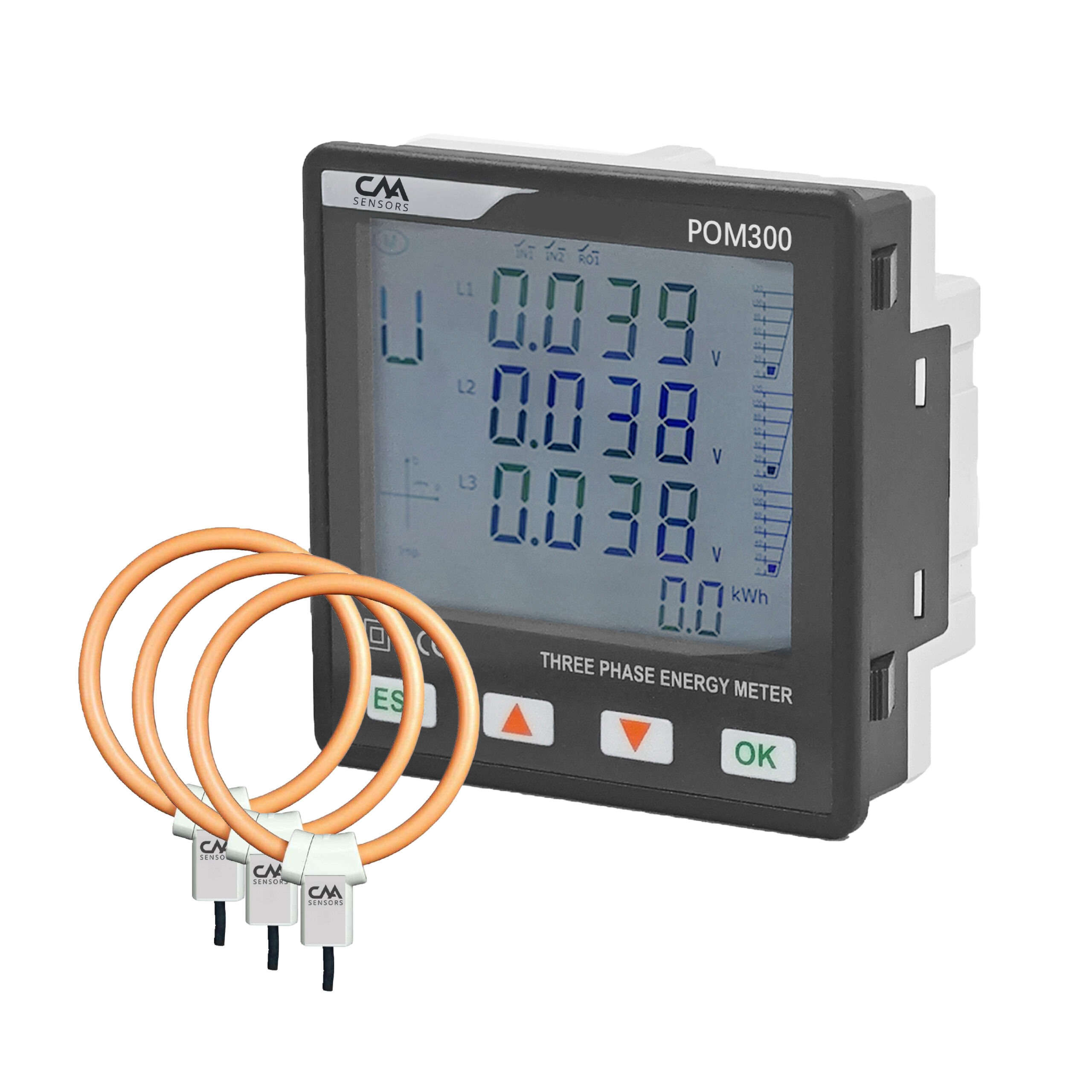

The unit comes with 3 Rogowski coils current transducers. Rogowski coils have a large flexible coil and are an excellent solution where a traditional current clamp is too difficult to fit. The coil is shielded against the influence of external magnetic fields and is suitable for high power load analysis. Coils can be fastened by cable ties for permanent installs.
Power Meter Pack
- Power Meter
- 3 Rogowski Coils – choose from 500 amps, 1,000 amps or 3,000 amps
- User Manual
- Calibration Certificate
- 12 month warranty
Warranty
12 month warranty
Other Information

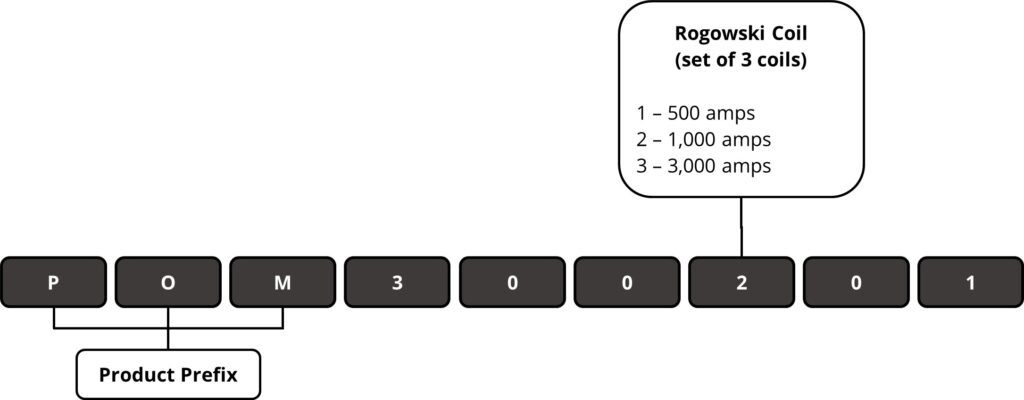

Part Numbers: POM300101, POM300201, POM300301
