Oil Vapour & Dew Point Monitor – Portable

Compact Flow Meter

The Portable Oil Vapour & Dew Point Monitor is ideal for pharmaceutical, food, and beverage manufacturers. It monitors oil vapour, pressure dewpoint, pressure and temperature. It also gives the air purity class for oil vapour (ISO 8573-5) and moisture (ISO 8573-3).

Standard Features

  • Measurement Range:
    • Oil Vapour: 0.001 to 5.000 mg/m³
    • Dew Point: -110 to +20°C (166°F to +68°F)
    • Pressure: 0 to 17 bar (0 to 246 psi)
    • Gas Temperature: 0 to +50°C (32°F to +122°F)
  • ISO 8573-5 class for oil vapour
  • ISO 8573- 3 class for moisture (dew point)
  • 25 GB of storage, log up to 3,000,000,000 (3 billion) values
  • Data output – Modbus RS485 or USB (csv file)
  • 2 x alarm relay output channels
  • Power requirement: 24 to 30 VDC

Options

  • Power Plug

Applications

  • Manufacturing, industrial, food & beverage, and pharmaceutical use
  • Temporary or permanent installation
  • Non-explosive environments
SKU: PUR Categories: , Tags: , , Brand:

The Portable Oil Vapour & Dew Point Monitor is ideal for pharmaceutical, food, and beverage manufacturers. It monitors oil vapour, pressure dewpoint, pressure and temperature. It also gives the air purity class for oil vapour (ISO 8573-5) and moisture (ISO 8573-3).

The 7″ touchscreen provides real-time information, data recording, and USB export (CSV format). With 25 GB of onboard storage, users can easily perform data analysis directly on the screen or download data to their computer for further analysis.

The device has excellent repeatability and stable performance. The automatic calibration and self-cleaning ensures reliable accuracy and extended sensor life.

Easy to install via 6 mm PTFE tube and quick-connect tube fittings. Easy to move between sites.

Warranty

12 month warranty

Other Information

Part Numbers: PUR100001, PUR100002, PUR100003, PUR100004, PUR100005

Features

Oil Vapour

  • Measuring Range 0.001 … 5.000 mg/m³
  • Accuracy ±(1.5%RD + 0.3%FS)
  • Resolution 0.001

Dew Point

  • Measuring Range -110 to +20 °Ctd (166°F to +68°F)
  • Accuracy:
    • ±2 °Ctd (-60 … +20 °Ctd
    • ±3 °Ctd (-110 … -60 °Ctd）

Pressure

  • Measuring Range 0 to 1.7 Mpa(a) (0 to 246 psi)
  • Accuracy ±0.3 %FS @23℃
  • Resolution 0.01

Temperature

  • Measuring Range 0 to +50 ℃ (32°F to +122°F)
  • Accuracy ±0.3 ℃
  • Resolution 0.01

Other Features

  • Measuring Medium Compressed air and non-corrosive, non-explosive gases
  • Sample Gas Flow Rate: 0.5 … 2 Nl/min
  • Data Logging: Storage 25 GB (3,000,000,000 values)
  • Data Export: USB Type-C (csv file)
  • Signal Output:
    • Analogue Output 4-20mA
    • Digital Output Modbus RTU (RS485)
  • Alarm Output 2 × Relay alarm channel (Oil Vapor, Dewpoint)
  • Supply Voltage & Power: 18 … 30 VDC, Max 50 W @ 24 VDC
  • Power Supply Included
  • Display: 7″ IPS touch LCD, 1280 × 800 px
  • Zero Filter Life Time: 2 Year @ 2 ppm
  • UV Lamp Life Time: 8,000 hours
  • Case Material: PP
  • Dimensions 445 × 319 × 177 mm (L×W×H)
  • Warranty 12 months

Applications:

  • Manufacturing, industrial, food & beverage, and pharmaceutical use
  • Temporary or permanent installation
  • Non-explosive environments

Downloads

User Manual

Product Flyer – Specifications and Order Codes

Order Codes (SKU)

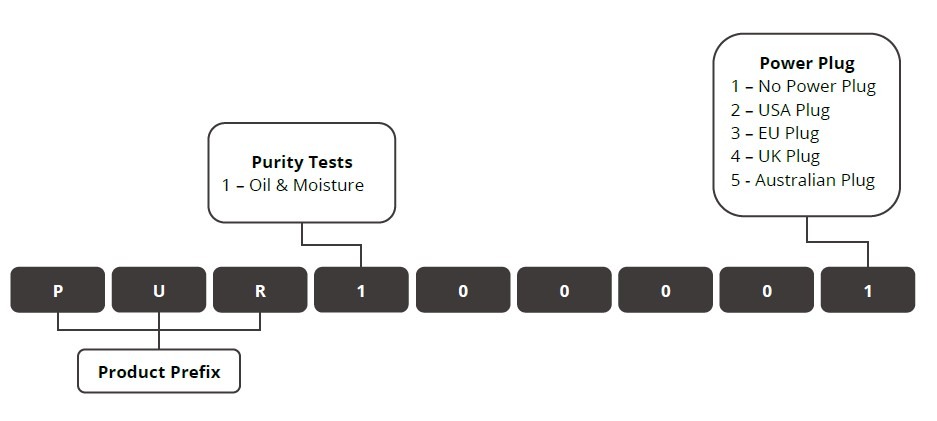

Use the diagram below to select the features of your Portable Oil Vapour & Dew Point Monitor.

Order Codes for the Air Purity test kit

Plug Type

Australian Power Plug, Euro Power Plug, UK Power Plug, USA Power Plug, No Plug
