ModuMesh Kit
ModuMesh Diagram

ModuMesh

Rogowski Coil Compact Flow Meter

$473.00

ModuMesh is wireless Modbus RS485 mesh device. It allows you to wirelessly transmit data from sensors to a display or data acquisition module, thus removing the need for long runs of cable.

Standard Features

  • Wireless communication radio frequency:
    • 868MHz (EU)
    • 902-928MHz (Americas, Asia and Australia).
  • Range: Up to 1 km (line of sight)
  • Encrypted communications by AES 128bits
  • IP Rating: IP54
  • Power Requirement: 9 to 30 vDC

Applications

  • Manufacturing, industrial and pharmaceutical use
  • Temporary or permanent installation
  • Non-explosive environments
SKU: MOD Categories: , , Tags: , , Brand:

ModuMesh is wireless Modbus RS485 mesh device. It allows you to wirelessly transmit data from sensors to a display or data acquisition module, thus removing the need for long runs of cable.

At a minimum, you need two (2) ModuMesh devices:

  • one Primary Controller (connected to the Modus Master, eg a display or data acquisition module) and
  • one Node (connected to sensors)

The network follows a star topology, with all wireless communications converging at the Primary Controller.

Warranty

12 month warranty

Other Information

Part Numbers:

  • MOD100001 and MOD100001 (EU and Middle East)
  • MOD200001 and MOD200002 (Asia, Americas and Australia)

Features

  • Wireless communication on ISM band at:
    • 868MHz (EU)
    • 902-928MHz (Americas and Australia).
  • Range: Up to 1 km (line of sight)
  • Sensitivity: -104dBm typ
  • RF Power: Up to +26 dBm
  • Encrypted communications by AES 128bits
  • Auto routable
  • IP Rating: IP54
  • Up to 64 Modbus RTU (RS485) registers can be transmitted
  • Connection: M12 female connector, 5 pin – power and Modbus
  • Power Requirement: 9 to 30 vDC
  • Power Consumption
    • Idle: 170 mW
    • Transmitting: Peaks up to 700 mW
  • Antenna: SMA Female connector with a 3m cable
  • Mounting: Wall Mount
  • Casing: Powder-coated Aluminum
  •  Applications
    • Manufacturing, industrial and pharmaceutical use
    • Temporary or permanent installation
    • Non-explosive environments

Downloads

User Manual

Product Flyer – Specifications and Order Codes

Order Codes (SKU)

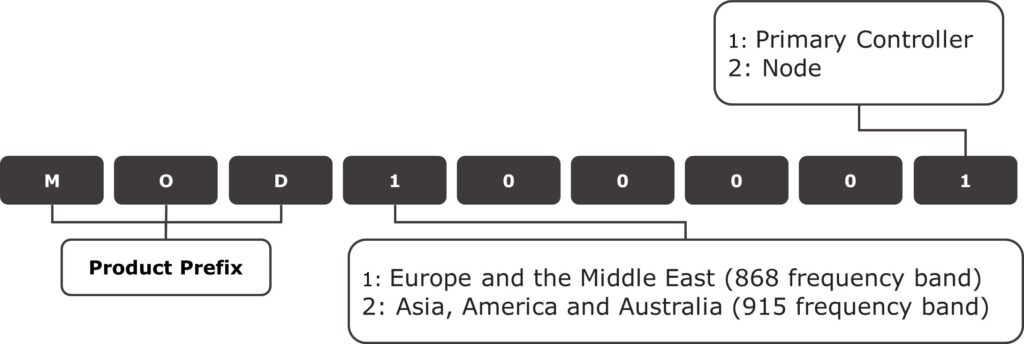

Use the diagram below to select the features of your ModuMesh.

Don’t forget, you need at least two ModuMesh – 1 x Primary controller and at least 1 x Node



Order Codes - ModuMesh

Radio Frequency

868 MHz – Europe and the Middle East, 915 MHz – Asia, America and Australia
HS Code

8517.62
